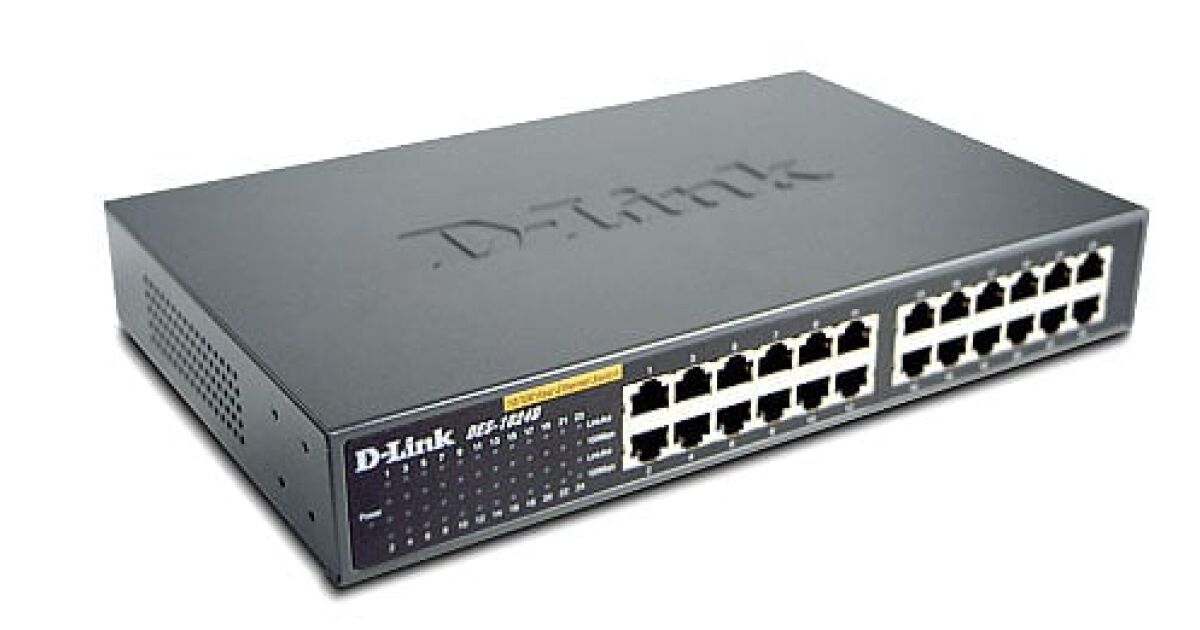

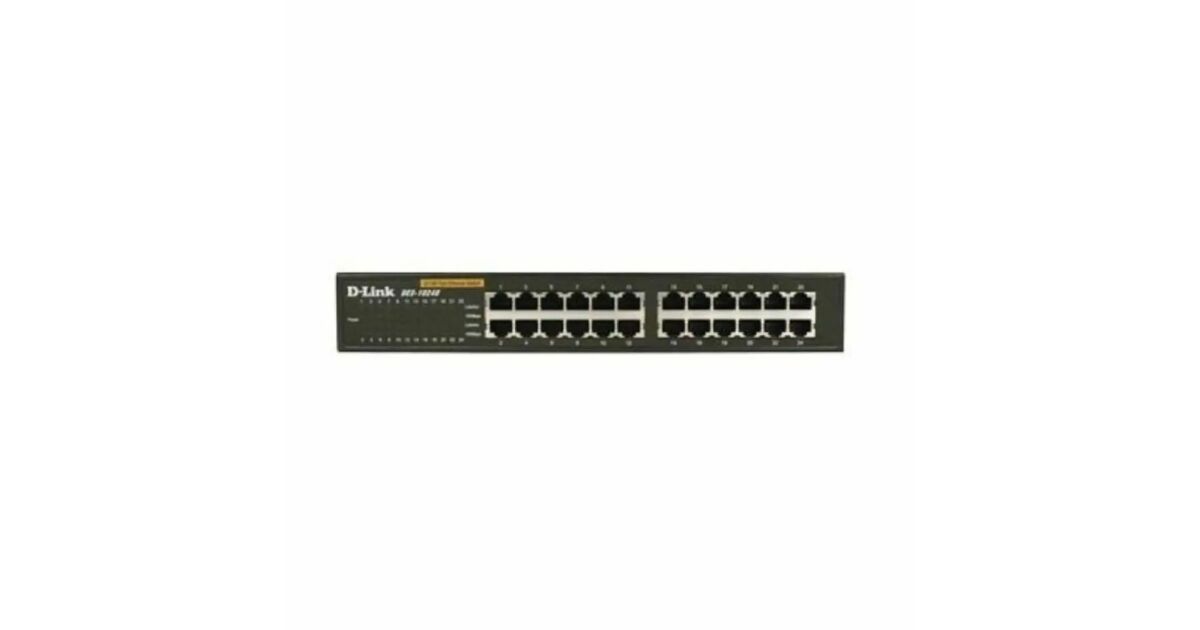

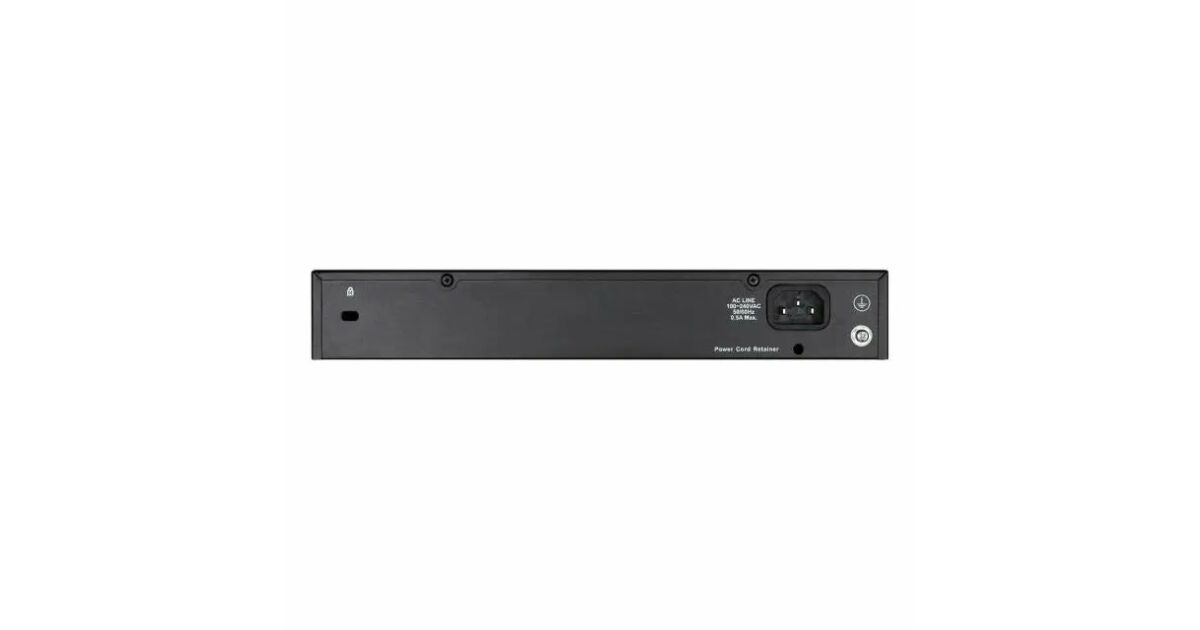

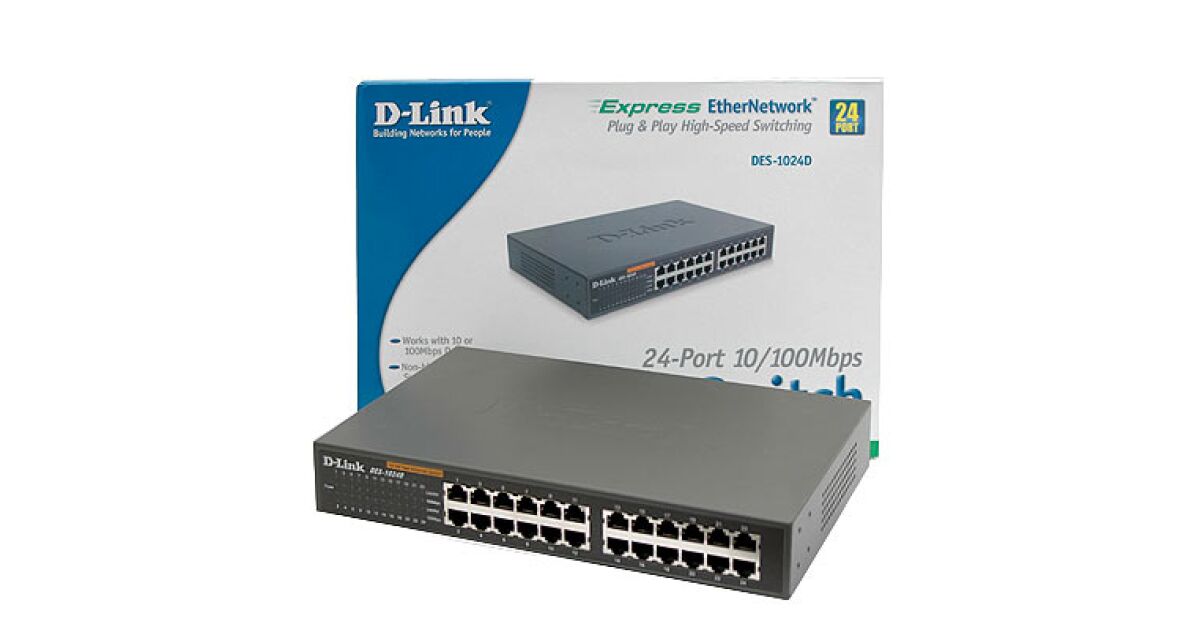

D-link switch 24x100mbps metal enclosure desktop rack, des-1024d/e DES-1024D/E

Technical Specifications:



D-Link DES-1024D Specifications

General

Standards

IEEE 802.3 10BASE-T Ethernet (twisted pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control

LAN

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX compliance
IEEE 802.3x Flow Control support

Data Transfer Rates

Fast Ethernet

100 Mbps half-duplex
200 Mbps full-duplex

Ethernet

10 Mbps half-duplex
20 Mbps full-duplex

Functionality

Switching Capacity
4.8 Gbps

Number of Ports
24 10/100Mbps Fast Ethernet ports

Network Cables

10BASE-T:

UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX:

UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port:

Link/Activity

Per device:

Power

Transmission Method
Store-and-forward

MAC Address Table
8K entries per device

MAC Address Learning
Automatic update

Packet Filtering /Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

Topology
Star


Protocol
CSMA/CD

Physical

Dimensions
11.0 x 5.0 x 1.7 inches(280 x 125.8 x 44 mm)

Weight
3.652lbs(1.66kg)

Power Consumption

Power On (Standby):

DC input: 1.33 Watts
AC input: 2.39 Watts

Maximum:

DC input: 5.50Watts
AC input: 8.07Watts

Heat Dissipation

Power On (Standby):

AC input: 8.16 BTU/h

Maximum:

Maximum
Maximum
Capacity

MTBF
810,880 hours

Temperature

Operating: 32 to 104 °F (0 to 40 °C)
Storage: 14 to 158 °F (-10 to 70 °C)

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing

Certifications

CE
FCC
ICES-003
C-Tick
cUL
CB
