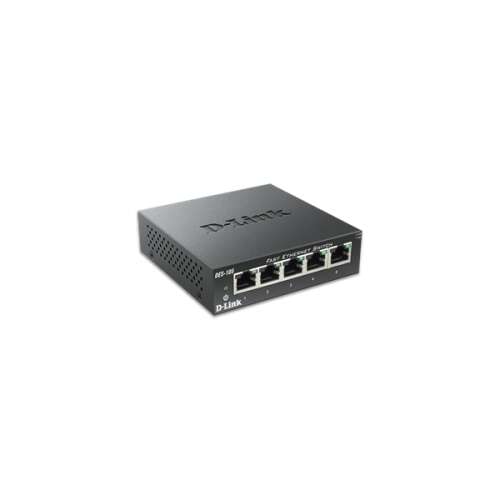

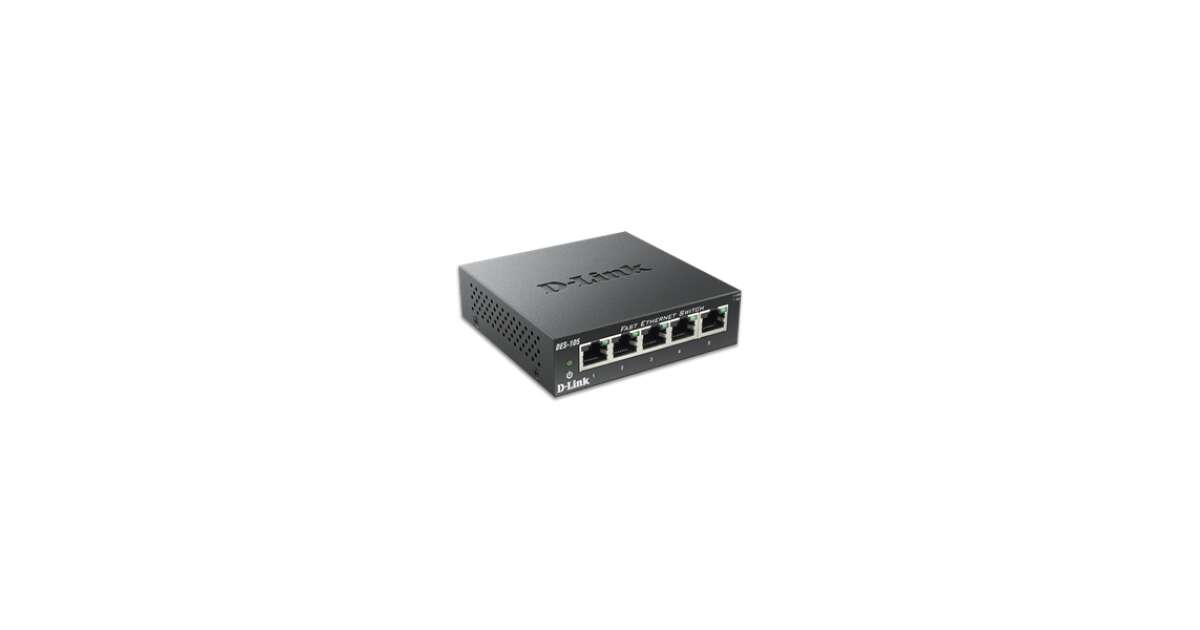

D-Link DES-105/E Switch 5x100Mbps metal enclosure desktop
D-Link DES-105/E Switch 5x100Mbps metal enclosure desktop description of
Technical Specifications:
D-Link DES-105/DES-108 Specifications
DES-105
DES-108
Switching Capacity
1.0 Gbps
1.6 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Network Cables
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port: Link/Activity
Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
2K
1K
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
384 KBytes per device
768 KBytes per device
Jumbo Frames
2048 bytes
QoS
4 Queues, strict mode
General Specifications
DC Input
External 5 V/0.55 A Level "V" Power Adapter
Power Consumption
Power On (Standby):
DC input: 0.15 watts
AC input: 0.25 watts
Maximum:
DC input: 0.85 watts
AC input: 2.17 watts
Power On (Standby):
DC input: 0.25 watts
AC input: 0.3 watts
Maximum:
DC input: 1.3 watts
AC input: 2.4 watts
Heat Dissipation
Power On (Standby) AC input: 0.853 BTU/h
Maximum DC input: 2.9002 BTU/h
Power On (Standby) AC input: 1.0236 BTU/h
Maximum DC input: 4.4356 BTU/h
MTBF
1,398,635 hours
863,878 hours
Operating Temperature
32 to 104 °F (0 to 40 °C)
Storage Temperature
14 to 158 °F (-10 to 70 °C)
Operating Humidity
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
Dimensions
3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm)
6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)
Weight
0.57 lbs (256 grams)
0.90 lbs (412 grams)
Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
Article number: DES-105/E
